IP67 WATERPROOF SWITCHING POWER SUPPLY

Hot Sale 12v 60w 100w 150w 200w 300w 400w IP67 Waterproof Switching Power Supply for Outdoor Led CCTV and Equipment

  • Overview
  • Related Products
Products Description
Model Number
FS
Brand Name
CKS
Product Number
IP67 Waterproof Power Supply
Input Frequency Range
AC110-220V 50/60Hz(60W/100W),AC170-265V 50-60Hz(150W/200W/300W/400W)
Output voltage
DC 12V
Output current
DC 5A/8.3A/12.5A/16.7A/25A/33.3A
Output power
60W/100W/150W/200W/300W/400W
Material
Aluminium
Protections
Overload/Over Voltage/Over Current/Short Circuit Chat
OEM&ODM
Voltage/Current/Power/AC plug/DC plug/Cable length/Color/Packaging/LOGO Chat
Warranty
12 months
NOTE
1. Ripple&Noice are tested at 20MHZ of bandwidth by testing parallely connecting a 0.1uf and 10uf ceramic capactior.
2. Please make sure the product parameter meet your equipment before using.
3. All product parameters may change subject to actual test.

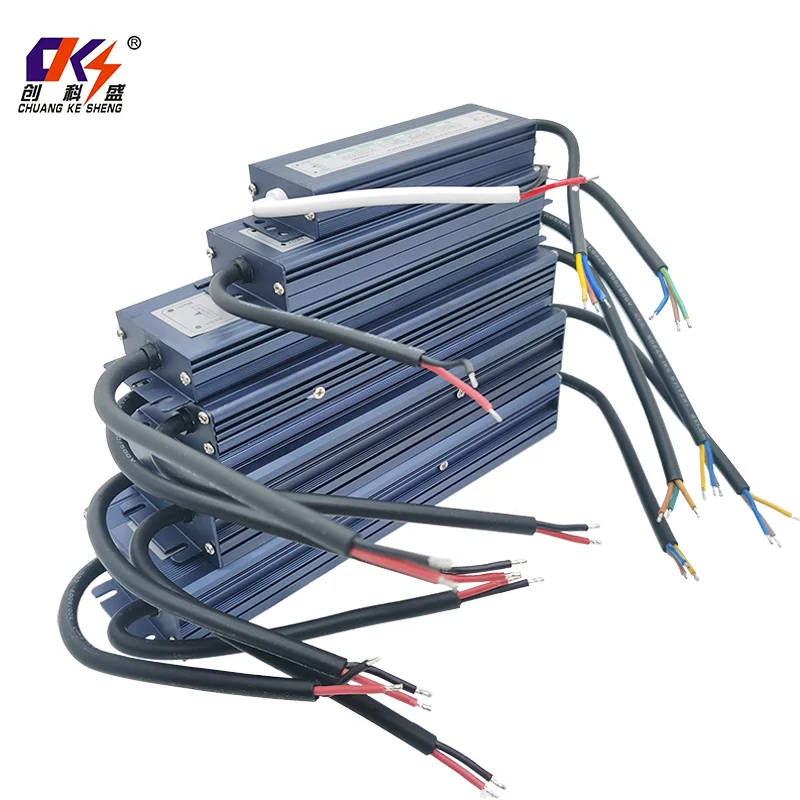

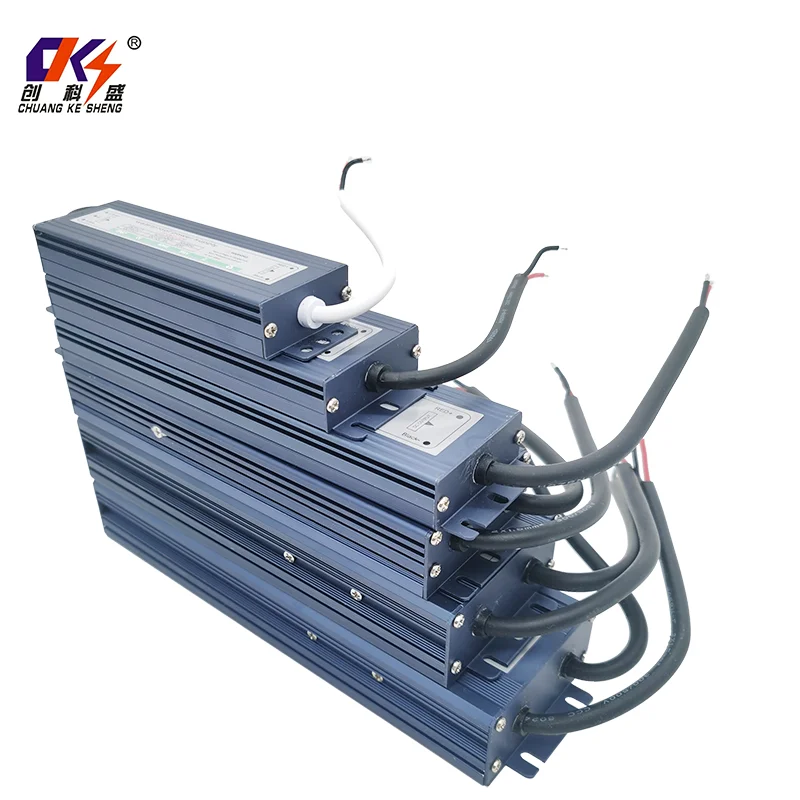

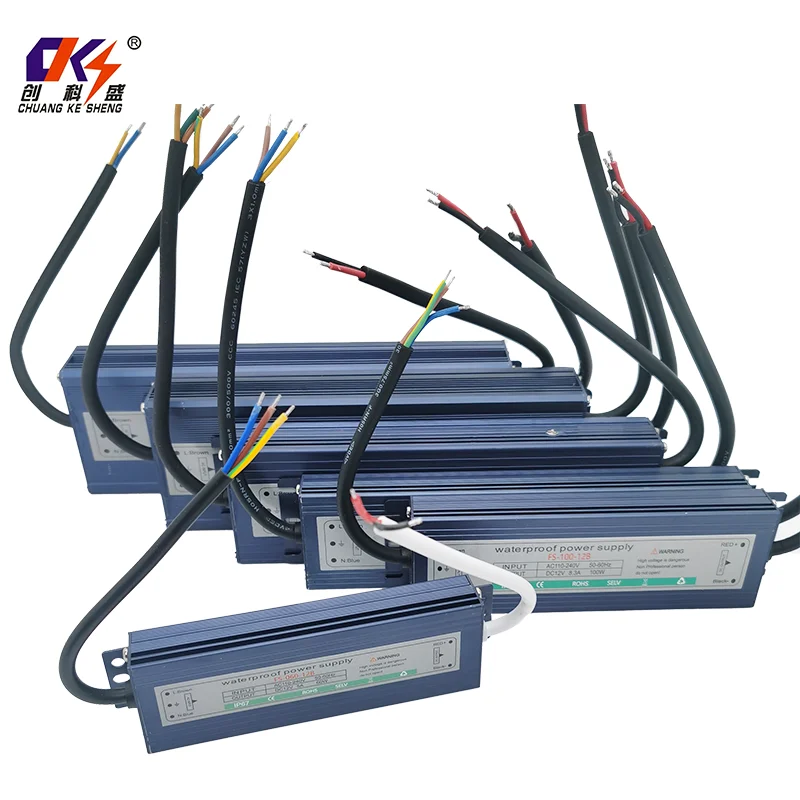

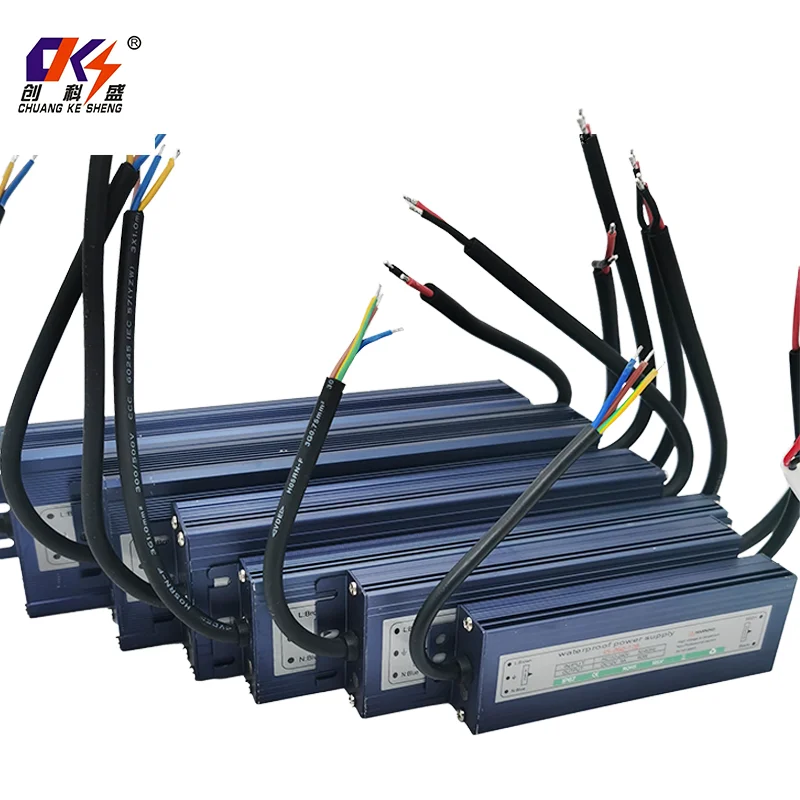

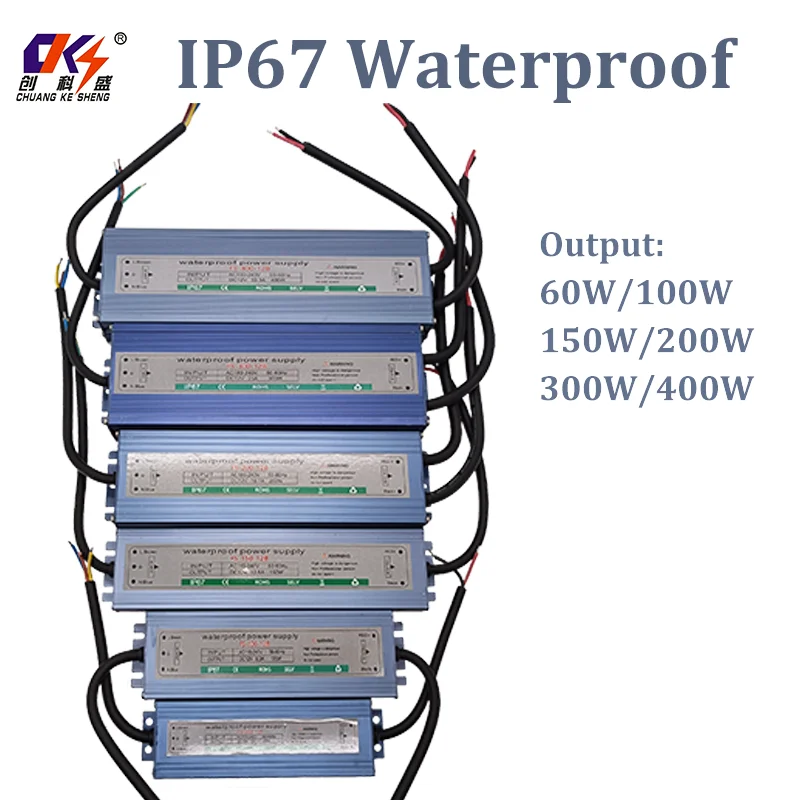

Product Display
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-0
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-1
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-2
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-3
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-4
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-5
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-6
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-7
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-8
Related Products
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-9
Specs
Value
Model Number
FS-060-12
Product Name
12V5A IP67 Waterproof Power Supply
Output Power
60W
Input
AC110-220V 50-60Hz
Material
Aluminum
Product Size
155*45*20MM
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-10
Specs
Value
Model Number
FS-100-12
Product Name
12V8.3A IP67 Waterproof Power Supply
Output Power
100W
Input
AC110-220V 50-60Hz
Material
Aluminum
Product Size
182*52*20MM
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-11
Specs
Value
Model Number
FS-150-12
Product Name
12V12.5A IP67 Waterproof Power Supply
Output Power
150W
Input
AC170-265V 50-60Hz
Material
Aluminum
Product Size
225*52*20MM
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-12
Specs
Value
Model Number
FS-200-12
Product Name
12V16.7A IP67 Waterproof Power Supply
Output Power
200W
Input
AC170-265V 50-60Hz
Material
Aluminum
Product Size
225*63*29MM
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-13
Specs
Value
Model Number
FS-300-12
Product Name
12V25A IP67 Waterproof Power Supply
Output Power
300W
Input
AC170-265V 50-60Hz
Material
Aluminum
Product Size
235*76*35MM

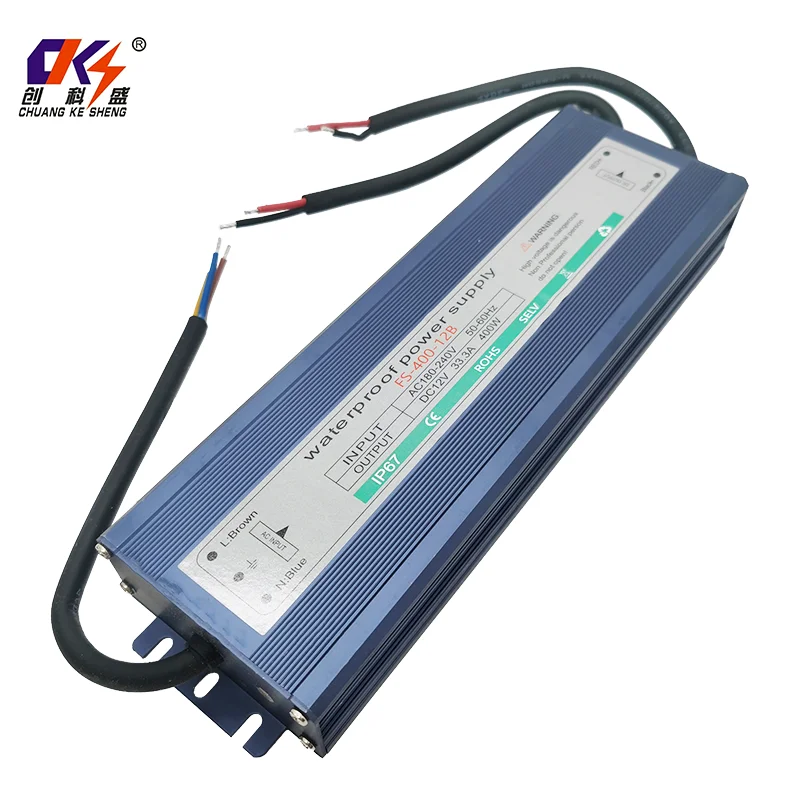

product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-14
Specs
Value
Model Number
FS-400-12
Product Name
12V33.3A IP67 Waterproof Power Supply
Output Power
400W
Input
AC170-265V 50-60Hz
Material
Aluminum
Product Size
255*76*36MM
Company Introduction
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-15
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-16
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-17
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-18
product hot sale 12v 60w 100w 150w 200w 300w 400w ip67 waterproof switching power supply for outdoor led cctv and equipment-19
FAQ
Q: What's the price?
A:I'm sorry, the price gap is very big for different specification,so i can only quote you after knowing your product details.
Q: Do you offer FREE samples for testing?
A: 5 free samples, but freight charge will be required, or any of your account.
Q: Are you manufacturer?
A:We are a professional power adapter manufacturer with high reputation in this field. About 101-200 workers.
Q: How can you guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: What can we buy from you?
A: Power adapter; Switching power supply, Laptop adapter, Adapter cable, Power cable, Wire.
Q: Why should we buy from you not from other suppliers?
A: Our factory produces every part of our adapter including shell/PCB board/wire... , Had our own R&D team, and widely used in various areas, the factory after strict screening of aging, aging rate 100%, failure rate is lower than 0.2%.
Q: What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;RMB
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash...
Language Spoken:English,Chinese
